120 Watt 12v Power Adapter Charger Wall Mount For Monitoring Camera , CE Rohs

Name: 120 Watt 12v Power Adapter Charger Wall Mount For Monitoring Camera CE Rohs
Brand: OEM/Anenerge
Price: 1 USD

China 120 Watt 12v Power Adapter Charger Wall Mount For Monitoring Camera , CE Rohs wholesale

Brand Name : OEM/Anenerge

Model Number : AE-12V120W

Certification : CE Rohs FCC UL TUV GS CB SAA KC

Place of Origin : Shenzhen

MOQ : 1pcs

Price : Negotiable

Payment Terms : Western Union,Paypal,T/T

Supply Ability : 1000000pcs/month

Delivery Time : 3-5days

Packaging Details : Neutral white box packaging

Output : 12volt 10amp

Power : 120Watt

Available : LCD machine CCTVs LED lights

Ripple Noise : 100mvpp

Warranty : 2 years

Original : shenzhen

Packaging : Neutral packaging

Contact Now

120Watt 10A 12v power adapter,DC power supply charger with CE UL for LEDs CCTVs

Description:
1. input voltage range of AC90-264V. wide voltage input, comply with the global standard.
2. input voltage frequency: 47-63Hz
3. output voltage: according to customer requirements
4. output voltage adjustable rate: 1%
5. rated output current can be customized
6. current output range 0-5A
Protections
1) over voltage protection: 120%min
2) over current protection: 120%min
3) over protection
4) Short-circuit protection: automatic recovery
5) Load regulation: ±5%
Environmental requirement
1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5Insulation resistance: DC 500V 100MΩ (minimum)
Advantages
1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
6. Installed with EMI filter ,minimum wave

Applications:

100-240Vac 50-60Hz AC DC Adapter 12V 3.5A KC
can be applied in security equipments, portable equipments, telecommunication equipments, consumer equipments, and other equipments.

Security equipment: monitoring camera, hard disk video recorder, security system, control equipment, monitoring equipment, etc.
Portable equipment: portable DVD, radio, mobile hard disk box, portable tools, charger, lithium ion battery, game machine, language repeater, walkman, digital products, tablet PC, etc.
Telecommunication equipment: router, microprocessor system, ADSL equipment, telephone composite aircraft, hub, telecommunications terminal equipment, cell phone, etc.
Consumer equipment: LCD TV, HD player, DVD players, digital photo frame, electronic refrigerator, acoustics, LED lamps and lanterns, small power electric appliances, electric tools, audio-video products, mini TV, decorative lighting, massager, LED lighting, electric bicycle battery charger, small size LCD TV and set top box, air cleaner, LCD, computer monitor, etc.
Other equipment: industrial automation control, military equipment, scientific research equipment, industrial control equipment, electric power equipment, medical equipment, semiconductor refrigeration and heating, computer chassis, instrument power supply, printer, testing equipment, and almost any other portable type equipment.

Product Description:

Output	DC output voltage	5V	12V	24V
	Output voltage tolerance	±5%	±5%	±5%
	Rated output current	7A	10A	5A
	Output current	0~7A	0~10A	0~5A
	Output power	35W	120W	120W
	Ripple and noise	100mVp-p	100mVp-p	240mVp-p
	Line regulation	±1%	±1%	±1%
	Load regulation	±5%	±5%	±5%
	Voltage adj . range	Fixed
	Setup rise hold up time	500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load
Input	Input voltage range	90~264VAC 135~370VDC
	AC input current	0.7A/100VAC
	Efficiency	75%	80%	83%
	AC inrush current	45A/230VAC
	Leakage current	0.75mA/240VAC
	Frequency range	47~63Hz
Protection characteristic	Over load protection	110%~150%rated output power
		Protection mode : Hiccup mode ,auto-recovery after fault condition is removed.
Environment	Working temperature	0℃~+50℃
	Working humidity	20%~90% RH non-considering
	Storage Temp,humidity	-20℃~+85℃,10~95%RH
	Temp.coefficient	±0.03% /℃(0~50℃)
	Vibration	10~500Hz, 2G 10min./1 cycle ,period for 60 min. each along X Y Z axes
Safety	Withstand voltage	I/P-O/P:3000 VDC
	Safety standards	EN60950
	Insulation resistance	I/P-O/P:100M Ohms/500VDC/25℃/70%RH
	EMI conduction&radiation	Compliance to EN55024, EN61000-3-3
	EMS immunity	Compliance to EN61000-3-3
	Harmonic current	Compliance to
Others	Weight/Packing	0.4kg/38PCS/16.2kg
	Dimension	1706540MM

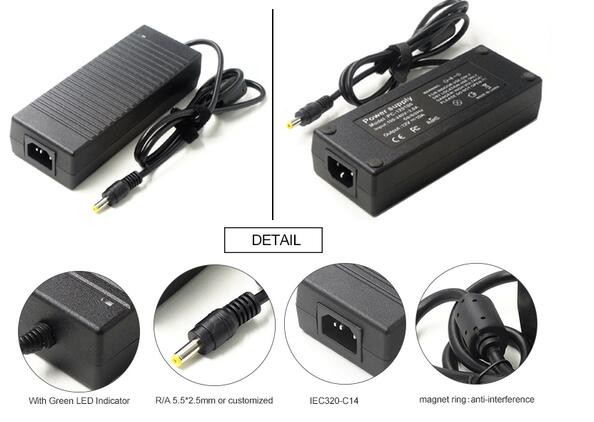

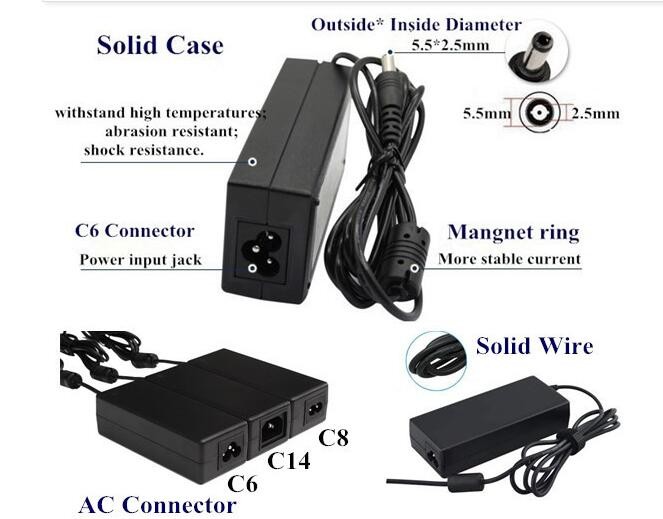

Connector	Plug	5.5X2.5mm
	Cable	1m
Remark: 1.All parameters are specified at 230VAC input, rated load, 27℃ 70%RH ambient 2. Ripple and noise are measured at 20MHz by using a 12 inch Twisted pair terminated with 0.1u and 47u capacitor 3. Tolerance: includes set up tolerance, line regulation, load regulation 4. DC voltage : the output voltage set at point measure by plug terminal &50% load 5.Line regulation is measured from low line to high line at rated load 6.Load regulation is measured from 20% to 100% rated load 7.The power supply is considered a component which will be installed into a final equipment .The final equipment must be re-confirmed that it stills meets EMC directives

1. 8years professional factory, ISO9001: 2008, GMC, BV,TUV,SGS quality system certified

2. 6 years exporting experience, OEM/ODM service is welcome

3. AC Input 100-240V, world wide use voltage

4. Compact size and easy to carry with

5. Grade A quality, 100% brand new electronic components; good quality PC+ABS fireproofing raw material

6.100% full load burning test, every aging test lasts more than 2 hours; 4 times full quality check; 6 times drop test; tin sweat test

7. Competitive wholesale price

8. Low defective rate, 0.3-0.5%
